Grade | Grain Size {um} |
Cobalt content {Co-%} |
Density {g/cm3} |
Hardness {HRA} |
TRS {N/mm2} |
KIC {MPa.m1/2} |
---|---|---|---|---|---|---|
ET020 | 0.7 | 10 | 14.45 | 91.8 | 3800 | 10.5 |
ETS610 | 0.6 | 10 | 14.45 | 92.2 | 4000 | 10.7 |
ET025 | 0.4 | 12 | 14.12 | 92.5 | 4200 | 10.2 |
ETS508 | 0.5 | 8 | 14.5 | 93.2 | 4000 | 9.60 |
ET010 | 0.4 | 6 | 14.8 | 94.1 | 3800 | 8.70 |
ET0209 | 0.2 | 9 | 14.45 | 94.0 | 4200 | 9.20 |
ET030 | 0.7 | 15 | 13.98 | 89.0 | 4500 | 13.8 |

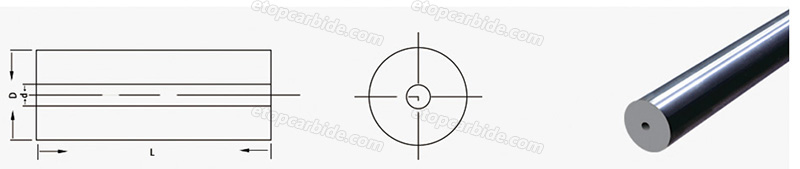

Type | D (mm) | d (mm) | L (mm) | |||
---|---|---|---|---|---|---|
D | Tolerance | d | Tolerance | L | Tolerance | |
Φ4.5×Φ0.8×330 | 4.5 | +0.50/+0.25 | 0.8 | ±0.15 | 330/310 | -0~+5.0 |
Φ6.0×Φ1.0×330 | 6.0 | +0.50/+0.25 | 1.0 | ±0.15 | 330/310 | -0~+5.0 |
Φ6.0×Φ1.5×330 | 6.0 | +0.50/+0.25 | 1.5 | ±0.20 | 330/310 | -0~+5.0 |
Φ7.0×Φ1.5×330 | 7.0 | +0.50/+0.25 | 1.5 | ±0.15 | 330/310 | -0~+5.0 |
Φ8.0×Φ1.0×330 | 8.0 | +0.50/+0.25 | 1.0 | ±0.15 | 330/310 | -0~+5.0 |
Φ8.0×Φ2.0×330 | 8.0 | +0.50/+0.25 | 2.0 | ±0.20 | 330/310 | -0~+5.0 |
Φ8.5×Φ1.5×330 | 8.5 | +0.50/+0.25 | 1.5 | ±0.15 | 330/310 | -0~+5.0 |
Φ9.0×Φ2.0×330 | 9.0 | +0.50/+0.25 | 2.0 | ±0.20 | 330/310 | -0~+5.0 |
Φ10.0×Φ2.0×330 | 10.0 | +0.50/+0.25 | 2.0 | ±0.20 | 330/310 | -0~+5.0 |
Φ10.0×Φ3.0×330 | 10.0 | +0.50/+0.25 | 3.0 | ±0.25 | 330/310 | -0~+5.0 |
Φ11.0×Φ3.0×330 | 11.0 | +0.50/+0.25 | 3.0 | ±0.25 | 330/310 | -0~+5.0 |
Φ12.0×Φ2.0×330 | 12.0 | +0.50/+0.25 | 2.0 | ±0.20 | 330/310 | -0~+5.0 |
Φ12.0×Φ3.0×330 | 12.0 | +0.50/+0.25 | 3.0 | ±0.25 | 330/310 | -0~+5.0 |
Φ13.0×Φ2.0×330 | 13.0 | +0.55/+0.25 | 2.0 | ±0.20 | 330/310 | -0~+5.0 |
Φ14.0×Φ3.0×330 | 14.0 | +0.55/+0.25 | 3.0 | ±0.25 | 330/310 | -0~+5.0 |
Φ16.0×Φ3.0×330 | 16.0 | +0.55/+0.25 | 3.0 | ±0.25 | 330/310 | -0~+5.0 |
Φ16.0×Φ4.0×330 | 16.0 | +0.55/+0.25 | 4.0 | ±0.30 | 330/310 | -0~+5.0 |
Φ18.0×Φ3.0×330 | 18.0 | +0.60/+0.25 | 3.0 | ±0.25 | 330/310 | -0~+5.0 |
Φ20.0×Φ4.0×330 | 20.0 | +0.60/+0.25 | 4.0 | ±0.30 | 330/310 | -0~+5.0 |
