Location : Home>Product Center>Carbide Mining Tools> PDC Substrate

> > PDC Substrate

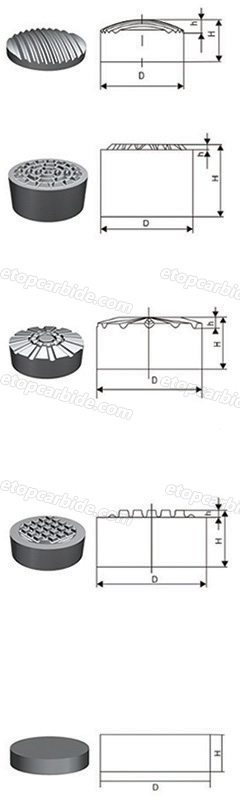

Type Dimension Approximate
weight (g)
D H h
ZFP14.6×4.2Z214.64.21.88.35
ZFP14.6×12.5Z214.612.51.827.6

Type Dimension Approximate
weight (g)
D H h
ZFP14.7×12.5S14.712.50.929.34
ZFP14.8×12.5S14.812.51.028.96
ZFP18.0×12.5S18.012.51.043.26

Type Dimension Approximate
weight (g)
D H h
ZFP14.6×4.8F14.604.81.610.04
ZFP14.6×7.5F14.607.51.616.40
ZFP16.76×12F16.7612.01.636.50
ZFP21.0×7.8F21.007.81.636.32

Type Dimension Approximate
weight (g)
D H h
ZFP9.25×7.6W9.257.60.67.08
ZFP10.8×7.6W10.807.60.69.68
ZFP11.35×7.0W11.357.00.69.68
ZFP12.75×12.7W12.7512.71.022.36
ZFP14.7×12.5W14.7012.51.029.40

Type Dimension Approximate
weight (g)
D H
ZFP9.5×7.8P9.57.67.92
ZFP11.0×5.5P11.05.57.49
ZFP13.7×3.8P13.73.87.99
ZFP14.6×4.1P14.64.110.05
ZFP15.5×4.0P15.54.011.16
ZFP33.9×7.0P33.97.090.19
ZFP45.0×3.9P45.03.992.72
ZFP55.0×3.5P55.03.5124.95
ZFP62.0×3.5P62.03.5159.22

Please contact us for sizes which don't be mentioned in the above chart.
