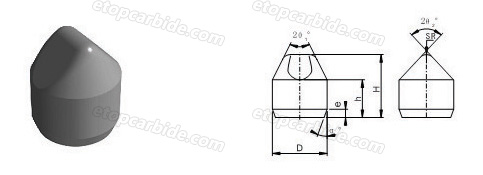

| Type | Dimension | |||||||
|---|---|---|---|---|---|---|---|---|
| D | H | h | θ1° | θ2° | SR | e | α° | |
| SX0809-E10 | 8.25 | 9.0 | 5.5 | 22.5 | 45.0 | 1.35 | 1.0 | 20 |
| SX1013-E16 | 10.25 | 13.0 | 9.0 | 22.5 | 45.0 | 2.5 | 1.6 | 18 |
| SX1115-E15 | 11.25 | 15.0 | 8.0 | 22.5 | 30.0 | 2.75 | 1.5 | 18 |
| SX1114A-E13 | 11.30 | 14.0 | 8.1 | 21.5 | 37.5 | 3.5 | 1.3 | 20 |
| SX1117B-E13 | 11.30 | 17.1 | 9.1 | 20.0 | 26.5 | 3.0 | 1.3 | 20 |
| SX1118C-E11 | 11.30 | 17.8 | 10.1 | 17.5 | 25.0 | 3.15 | 1.1 | 18 |
| SX1621-E20 | 16.35 | 21.0 | 11.0 | 22.5 | 35.0 | 2.6 | 2.0 | 18 |
| SX1623-E20 | 16.35 | 23.0 | 12.0 | 18.0 | 30.0 | 3.0 | 2.0 | 18 |
 |
