> > Spherical Buttons

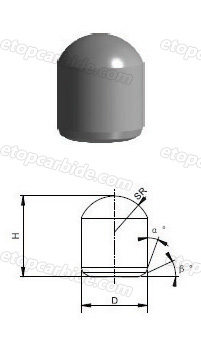

Spherical Double Chamfers Buttons
| Type |
Dimension |
| D |
H |
SR |
α° |
β° |
| SQ0610 | 6.25 | 9.9 | 3.4 | 20 | 26.5 |
| SQ0812 | 8.25 | 12.2 | 4.4 | 20 | 26.5 |
| SQ0914 | 9.25 | 13.9 | 5.0 | 20 | 26.5 |
| SQ1019 | 10.25 | 18.9 | 5.5 | 20 | 27 |
| SQ1119 | 11.30 | 19.0 | 6.0 | 20 | 27 |
| SQ1221 | 12.35 | 20.9 | 6.6 | 20 | 28 |
| SQ1220A-X | 12.35 | 20.0 | 6.3 | 25 | 24.75 |
| SQ1320 | 13.35 | 19.9 | 7.0 | 20 | 27 |
| SQ1422 | 14.35 | 22.1 | 7.7 | 20 | 16 |
| SQ1424A-X | 14.35 | 24.0 | 7.34 | 25 | 25 |
| SQ1625 | 16.35 | 24.9 | 8.8 | 20 | 16 |
| SQ1930 | 19.35 | 30.4 | 9.76 | 20 | 30 |
| SQ2132 | 21.65 | 31.9 | 11.8 | 20 | 30 |

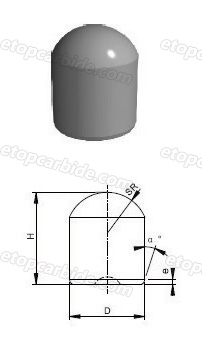

Spherical Chamfers Buttons
| Type |
Dimension |
| D |
H |
SR |
e |
α° |
| SQ0810-E15 | 8.25 | 10.0 | 4.4 | 1.5 | 18 |
| SQ0812-E15 | 8.25 | 12.0 | 4.4 | 1.5 | 18 |
| SQ1314-E15Q | 13.35 | 13.5 | 7.0 | 1.5 | 18 |
| SQ1320-E15Q | 13.35 | 19.9 | 7.0 | 1.5 | 18 |
| SQ1420A-E30Q | 14.35 | 20.0 | 7.2 | 3.0 | 18 |
| SQ1415B-E17Q | 14.35 | 15.0 | 7.5 | 1.7 | 18 |
| SQ1619A-E22Q | 16.35 | 19.0 | 8.8 | 2.2 | 18 |
| SQ1622A-E22Q | 16.35 | 21.9 | 8.8 | 2.2 | 18 |
| SQ1827-E15 | 18.25 | 27.1 | 9.2 | 1.5 | 18 |
| SQ1925 | 19.07 | 25.0 | 9.76 | 1.5 | 25 |
| SQ2028 | 20.07 | 28.0 | 11.5 | 1.8 | 25 |
| SQ0812-F2 | 8.25 | 12.2 | 4.4 | 0.7 | 30 |
| SQ0915-F2 | 9.25 | 14.9 | 5.0 | 0.7 | 30 |
| SQ1013-F2 | 10.25 | 13.0 | 5.5 | 0.7 | 30 |
| SQ1114-F2 | 11.30 | 14.0 | 6.0 | 0.7 | 30 |
| SQ1216-F2 | 12.35 | 16.0 | 6.6 | 0.7 | 30 |
| SQ1318-F2 | 13.35 | 18.0 | 7.0 | 0.7 | 30 |
| SQ1418-F2 | 14.35 | 18.1 | 7.7 | 0.7 | 30 |
| SQ1625-F2 | 16.35 | 24.6 | 8.8 | 0.7 | 30 |
| SQ2030-F2 | 20.45 | 30.0 | 11.5 | 0.7 | 30 |
| SQ2230-F2 | 22.45 | 30.0 | 12.0 | 0.7 | 30 |
Please contact us for sizes which don't be mentioned in the above chart.
